Compact Smith Machine 500

A vertical Smith machine with linear bearings and a 198 cm frame height, intended for rooms with limited ceiling clearance. The Australian package includes Olympic sleeves; optional J-hooks and spotter arms extend it to free-barbell work.

Australia listingUpdated 17 Oct 2026
Who it suits

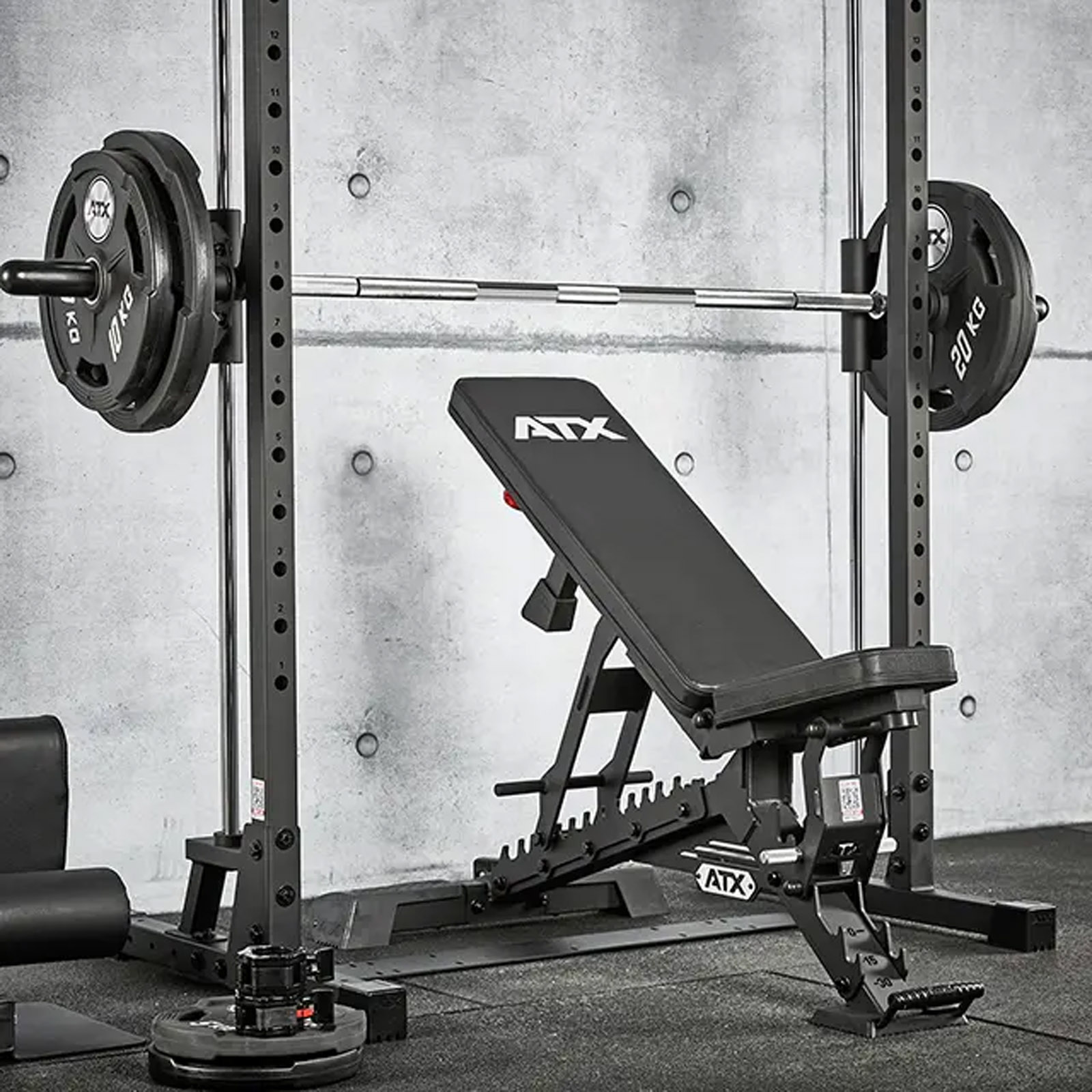

Useful when you already have a bench and plates and want a separate guided bar for presses, squats and rows. Its shallow frame can fit beside an existing strength setup.

The drawback

The base purchase is a Smith station. Free-barbell J-hooks and spotter arms cost extra, and Sam’s recommends floor fixing when adding that use.

$825.00 AUD · seen 17 Oct 2026ATX-MPX-500 Smith machine with Olympic sleeves; bench, plates and free-weight fittings excluded. Check the retailer for today’s price and delivery.

How we choose equipment About our buying links

Specifications

Model
ATX-MPX-500
Bar path

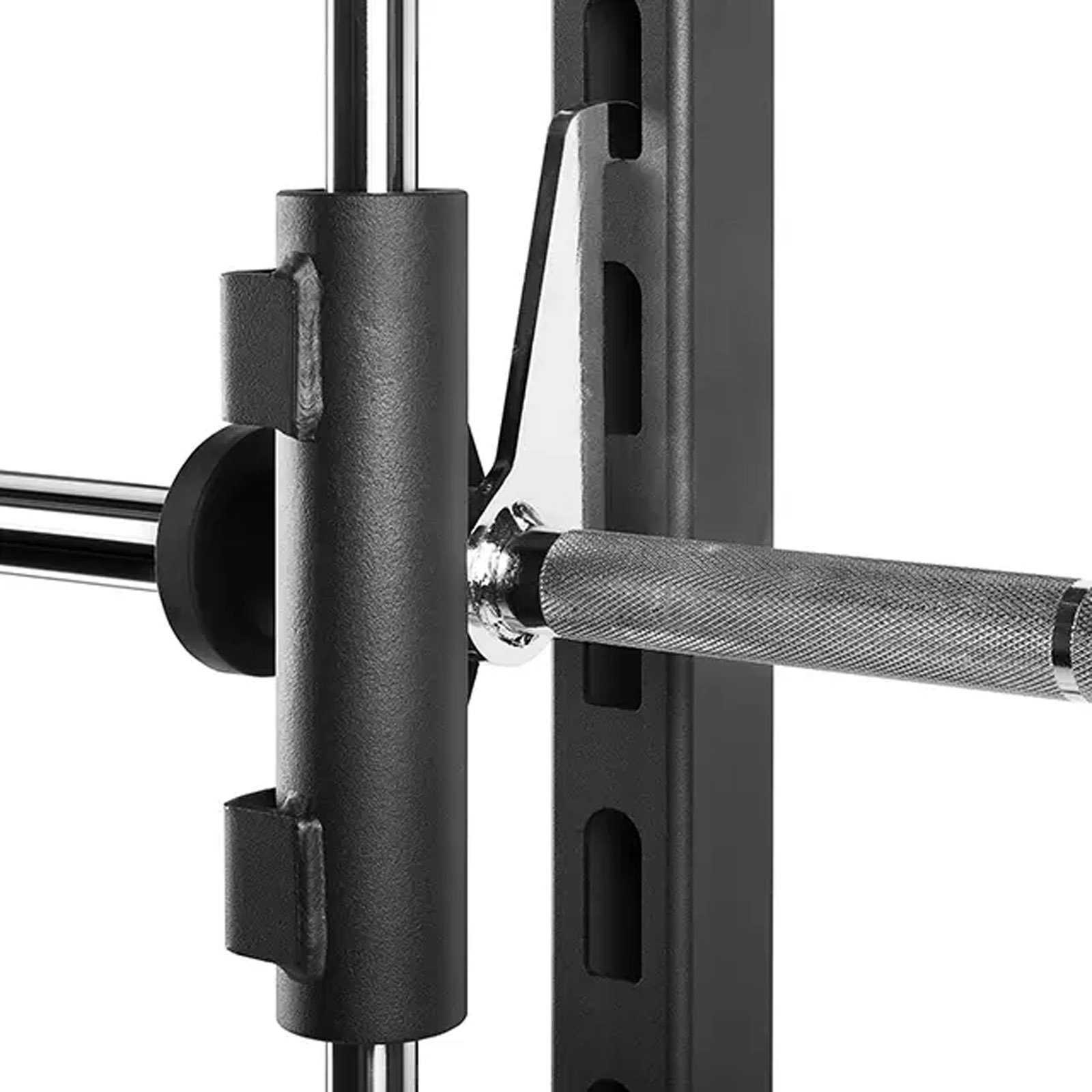

Vertical, on linear ball bearings
Smith capacity
200 kg, retailer specification
Lockout positions
15
Uprights
50 × 50 × 3 mm steel
Plate fit
50 mm Olympic sleeves supplied in Australia
Listed overall dimensions
189 × 86 × 198 cm (W × D × H)
Frame width
123.2 cm in the retailer’s dimension drawing

Check the footprint in your room
